Multi Color Camlock 400A Male Female Plug Socket 600V Wear Resistant

Name: Multi Color Camlock 400A Male Female Plug Socket 600V Wear Resistant
Brand: Golden Electric /OEM
Price: 1 USD

China Multi Color Camlock 400A Male Female Plug Socket 600V Wear Resistant wholesale

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Place of Origin : China

Brand Name : Golden Electric /OEM

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Supply Ability : 20000PCS/Month

Shape : EP

Application : Industrial/Power Supply

Interface Type : AC/DC

Nominal Voltage : 600V

Brand : Golden Electric /OEM

Rated Voltage : 600VAC

Rated Current : 200A/400A

Color : Blue Yellow Red Green Black White

Product Name : Cam- Lock Plug Connector Socket

Type : Adapter

Contact Material : Copper

Transport Package : Standard Export Carton

Specification : 200A/400A

Trademark : Golden or netural, or customer brand

Origin : China

HS Code : 8536690000

Package Size : 45.00cm * 40.00cm * 30.00cm

Package Gross Weight : 40.000kg

After-sales Service : Best After-Sales Service

Standard : European Standard, American Standard, Chinese Standard, British Standard, Germany Standard, South African Standard, Italian Standard, Swiss Standard

Function : Electrical Outlet Connection

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

This 200A/400A camlock power plug passes through the copper core by the locking screw of non-conductive material, which can fix the copper core stably in the re insulation sleeve. It is not suitable for the convenience of tool installation and disassembly, and can be compatible with the cam type cam locking single pole power connector of the same international mainstream brand. It is suitable for temporary power supply of indoor and outdoor stage performance, film shooting, exhibition, generator and other equipment.

Multi Color Camlock 400A Male Female Plug Socket 600V Wear Resistant

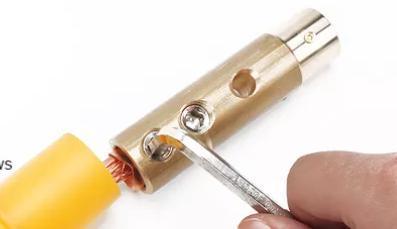

Unplug the rhino socket

Use a hex wrench
Loosen the two screws
Place the scalloped copper sheet put it inward

Thread the wire into the housing
Link the copper wire and tighten the screws

Align the card slots with the copper rod
Place in the card sleeve

Place the screws into the hole
Fixed well

Product name	Commerical / Industrial / Entertainment using power supply connector Power plug
Product type	plug & connector
Rated Current	200A /400A cam-lock
Available cable	200A 16~35mm²
Available cable	400A 50~120mm²
Rated Voltage	600V / Three-phase
Features	Single pin made by pure copper materials

Plug

Model	Rated Voltage(V)
RXG200-YE	600V
RXG200-GN
RXG200-RD
RXG200-BU
RXG200-BK
RXG200-WH
RXG400-YE
RXG400-GN
RXG400-RD
RXG400-BU
RXG400-BK
RXG400-WH

Male Connector

Model	Rated Voltage(V)
RXM200-YE	600V
RXM200-GN
RXM200-RD
RXM200-BU
RXM200-BK
RXM200-WH
RXM400-YE
RXM400-GN
RXM400-RD
RXM400-BU
RXM400-BK
RXM400-WH
