1p 2p 3p 3p N SPD Surge Protection Device for AC Electronical Lightning Protection

Name: 1p 2p 3p 3p N SPD Surge Protection Device for AC Electronical Lightning Protection
Brand: Golden Electric /OEM
Price: 1 USD

China 1p 2p 3p 3p N SPD Surge Protection Device for AC Electronical Lightning Protection wholesale

Shape : Module

Material : Nylon

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Brand : Golden or OEM

Voltage : DC 500V, 550V, 800V, DC1000V(3p) 1200V, 1500V

Us(Ka) : 20ka

Imax(Ka) : 40ka

Series : AC SPD, Surge Protector, Surge Protective Device

Color : Orange

Altitude : 2000

Where to Use : Solar PV System

Terminal Screwa : M5

Indication : Green(Good) Red(Replace)

Class Test : II

Transport Package : Standard Export Carton

Specification : 1p, 2p and 3p, 3p+N

Trademark : Golden or netural or customer brand

Origin : China

HS Code : 8536300000

Supply Ability : 5000/Month

Type : Power Source Arrester

Structure : Plugable

Installation : DIN Rail

Application : AC/DC System

Size : Small

Operation Voltage : High Voltage

Samples : US$ 9/Piece 1 Piece(Min.Order) | Request Samp

Customization : Available | Customized Request

Place of Origin : China

Brand Name : Golden Electric /OEM

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Contact Now

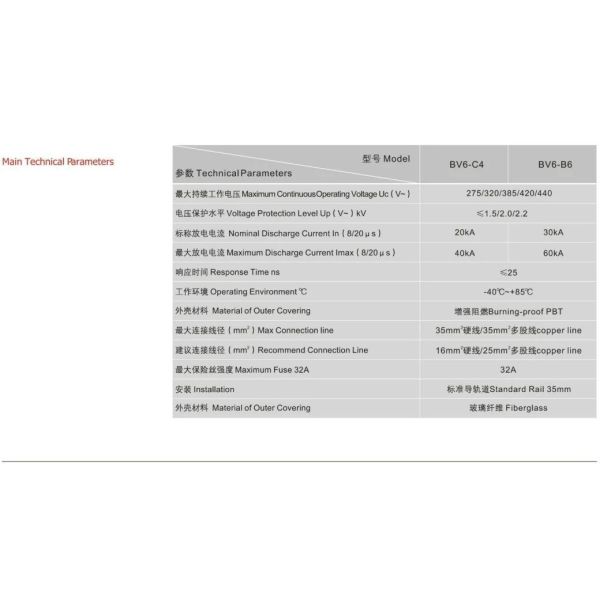

BV6-B, C series surge protective device (SPD) is suitable for TT IT TN-S TN-C-S etc. power supply system of AC 50/60Hz, 380V, installed on the joint of LPZ0 or LPZ1 and LPZ2 zone, which protects the electric network not shocked by the thunder and lightning, it's designed according to GB18802.1 IEC61643-1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protective device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal, it's also could be replaced for the module when has operating voltage.
1p 2p 3p 3p N SPD Surge Protection Device for AC Electronical Lightning Protection

Surge Protective Device Arrester Packing List:

Name	Specification	Packing quantity	GW/ctn	Carton size
GDPS-4 DC	2P/20~40KA/DC500V	60	18.5	423216.5cm
GDPS-4 DC	2P/20~40KA/DC800V	60	18.5	423216.5cm
GDPS-4 DC	2P/20~40KA/DC1000V	60	19	423216.5cm
GDPS-4 DC	3P/20~40KA/DC100V	40	18.3	423216.5cm
GDPS-4 DC	2P/20~40KA/DC1200V	40	19.3	423216.5cm

Packaging Details:

Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.

Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!

Delivery Detail:
Shipped in 7 days after payment

- Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.
Inverter:On grid and off grid inverter for 5 years warranty.
Surge protector: B,C,D Class, AC, DC type you can choose. Different types and discharge current you choose.
Manual transfer switch: 1A~1600A, 3P/4P.
Combiner box :Metal and plastic,can design as you need.
Insulator:SM and EL series insulator
Metal Enclosure for Transfer switch: Metal box, size can color can be customized.
Plstic distribution box: Different ways, competitive price, welcome to contact.

1.Best ensure 100% customer satisfaction.
2.Our products have one year guarantee.
3.Sample in design and easy to operate and maintain.
4.All electrical parts of products are made up for qualitified marterials.
5.No MOQ limited for the trial order.
6.We adopt good credit quality electrial appliances.
7.Best customer care and effcient after-sale services.
8.Don't hesitate to inquire us,we will reply you within 12 hours.
1p 2p 3p 3p N SPD Surge Protection Device for AC Electronical Lightning Protection

Q1: If I'm interested in your Solar SPD when I can receive your quotation and detail information after send the enquiry?

A:All your enquiry will be replied in 8hours.

Q2:Your Solar SPD seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!

A: Our DC SPD is special for Solar system all the parts in the SPD are high quality customized.Not all the DC SPD are Solar SPD!

Q3:Can I get a sample before the order because I really don't how is your DC SPD quality?

A:Of course!We also think sample order is the best way to build the trust.

Q4:How's the delivery?Because I really need them is urgently?

A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q5:How's the warranty period for your DC SPD?

A:We offer one year warranty for our customer.
