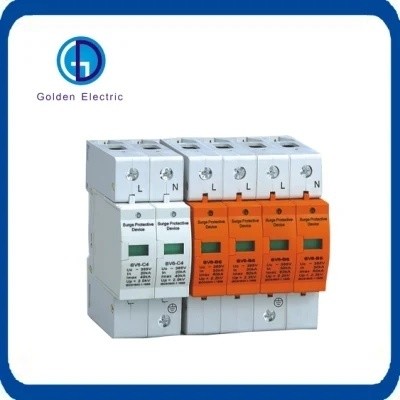

BV6-B.C series surge protective device(SPD)is suitable forTT,IT,TN-S,TN-C-S etc.power supply system of AC 50/60Hz,380V,installed on the joint of LPZ0 or LPZ1 and LPZ2 zone which protects the electric network not shocke d by the thunder and lightning, it's designed according to GB18802.1,IEC61643-1.it adopts 35mm standard rail.there is afailure release mounted on the module of surge protective device.When the SPD fails in breakdownfor over-heat andover-current the failure release will help electric device separate from the power system and give the indication signal green means normal red means abnormal, it's al so could be replaced for the module when has operating voltage.
It's suitable for B, C grade surge protection, installed on the joint of LPZ0 or LPZ1 and LPZ2 zone, which protects the power supply system not shocked by the thunder and lightning, it usually installed in household distribution boards, computer equipment, telecom equipment, elevator equipment, frequency conversion equipment, operating room, custody room, electronic equipment etc. and in the socket box in control equipment. Also applied for blew 6 floor household and small villadom.
Notice: When you order our goods, please write the model and quantity carefully. For example: BV6-C40/4P-385, 8 pieces
1.Could be replaced for the module not need power cut.
2.Maximum current of endure the lightning stroke 60kA(8/20us).
3.Time of response <25ns.
4.The color ofvisible window shows operating status green means normal red means abnormal.
| Model | BV6-C4 | BV6-B6 |
| Maximum Continuous Operating Voltage Uc(V~) | AC 275V/320V/385V/420V/440V |
| Voltage Protection Level Up (V~) kV | ≤1.5/2.0/2.2 |
| Nominal Discharge Current In(8/20us) | 20kA | 30kA |
| Maximum Discharge CurrentImax(8/20us) | 40kA | 60kA |
| Response Time ns | ≤25 |
| Operating Environment ºC | -40ºC~+85ºC |
| Installation | Standard Rail 35mm |
| Meterial of Outer Covering | Burning-proof PBT |
| Max Connection line(mm2) | 35mm Hard wire/35mm copper line |
| Recommend Connection Line(mm2) | 16mm /25mm copper line |
| Maximum Fuse | 32A |
| Material of Outer Covering | Fiberglass |
Model and Meaning
Dimension
